TENDTOP TT-G10803EXPOE-BP120 комутатор на 11 портів
- Під замовлення
- Код: Х000000004690
Відправка з 24 жовтня 20244 300 ₴
- +380 (96) 047-80-47 Менеджер
- +380 (57) 752-00-74 Менеджер

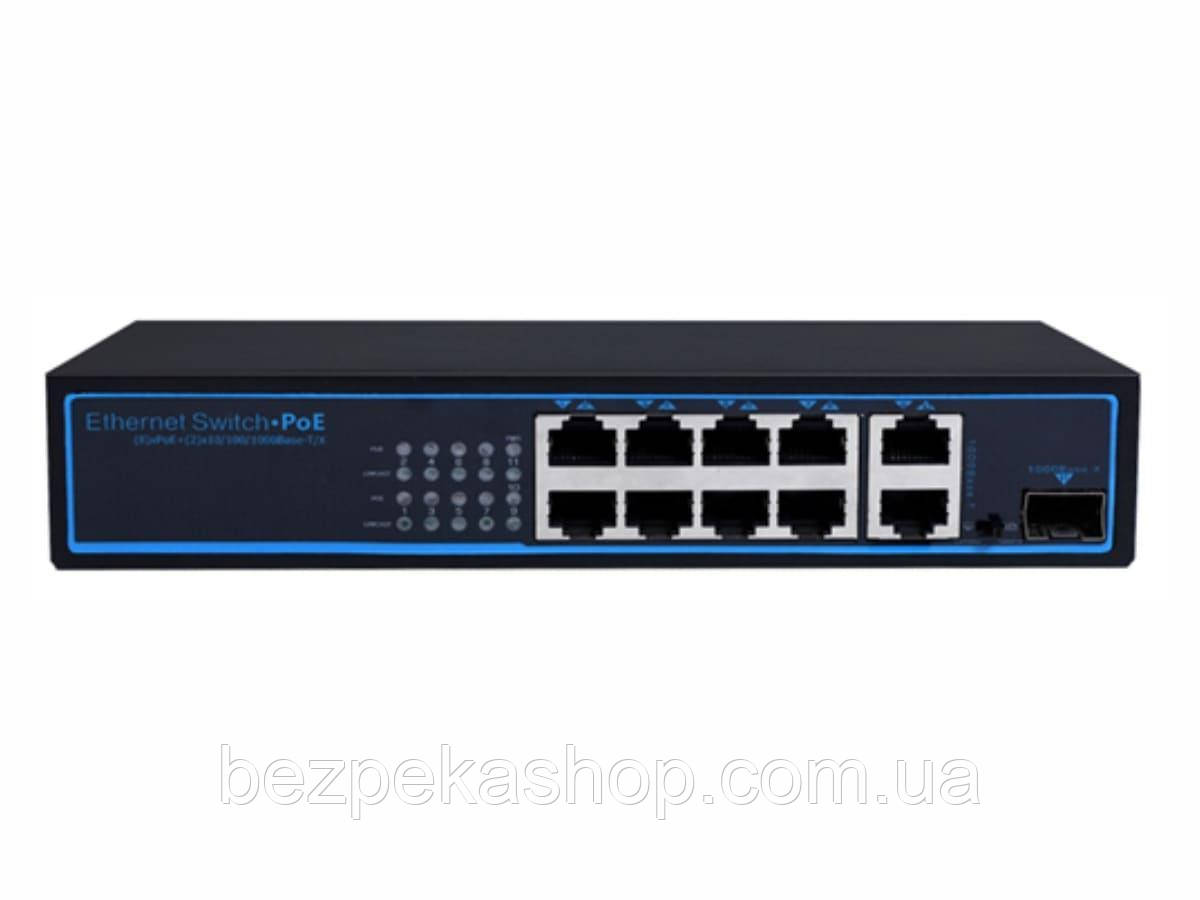

TT-G10803EXPOE is a compact The 8 Ports Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. It provides eight Gigabit downlink ports, and three Gigabit uplink Ethernet port. The eight downlink ports support 802.3af/at standard and feature Max 30W PoE power output of single port, Max 120W of whole machine. It can be widely used in security surveillance, hotels, schools, engineering and other occasions.
| Найменування | Значення |
|
Power |
Power Adapter Voltage |
110-240V AC |
Consumption |
120W |
|
Network Connector |
Network Port |
1～10 Port : 10/100/1000Mbps 1～8:POE Ethernet port |
Uplink Port : two Ethernet 1000Mbps one SFP 1000Mbps |
||
Transmission DistanceAA |
1～10 Port : 0 ~ 100m; |
|
SFP: depends on the optical module |
||
Transmission Medium |
Cat5/5e/6 standard network cable |
|
Network Switch |
Network Standard |
IEEE 802.1Q, IEEE 802.1u,IEEE 802.1x, IEEE 802.3ab |
Switching Capacity |
22Gbps |
|
Packet Forwarding Rate |
16.364Mpps |
|
MAC Table |
4K |
|
Power Over Ethernet |
POE Standard |
IEEE 802.3af |
POE Power Supply Type |
End-Span(1/2+;3/6-) |
|
PoE Power Consumption |
af≦15.4W,at≦30W(every port) |
|
LED Status Indicator VLAN/Extend |
POE Ethernet LED Indicator |
Power: 1 red light indicates that the power normal work |
POE:8 yellow lights indicate that the POE is power on |
||
Ethernet:11 green lights indicate that the Ethernet link and act; |
||
Environmental |
Working temperature |
0℃~55℃ |
Relative Humidity |
20~95% |
|
Storage temperature |
-20℃~70℃ |
|
Mechanical |
Dimension (L×W×H) |
201 mm *120 mm *41mm |
Color |
Black |
|
Weight |
699g |
|
Stability |
MTBF |
>30000h |
- Ціна: 4 300 ₴
